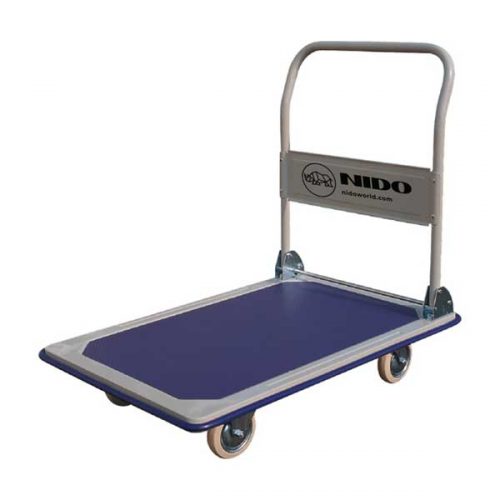

Platform Hand Truck ND-PHT Series

Model : ND-PHT-150 | ND-PHT-250

Nido  platform hand truck with 150 & 250 kgs capacity, offers users with simple, economic and reliable material transport.

  • Capacity: 150, 250, 350, 700, 1200 & 1800 kgs
  • MOC: MS

  • Designed for movement of materials and goods
  • Highly maneruverable truck
  • Heavy duty welded steel deck construction
  • Foldable design

Description

  • Highly maneuverable trucks have extra heavy-duty welded steel deck construction.
  • Used in shipping and receiving rooms, warehouses, stockrooms, shops, laboratories, and stores.
  • Extra heavy-duty formed steel deck has all welded construction with angle frame reinforcements welded underneath for additional strength.
  • Casters meet specified load capacity requirements and facilitate handling in confined areas.
  • Two ball bearing swivel and two rigid mounting plate casters. casters bolt on in standard corner pattern, or diamond (tilt type) pattern.
  • Diamond tilt pattern permits the truck to tilt balance slightly on center side casters, allowing the truck to turn in its own radius.
  • Extra capacity steel platform trucks with polyurethane caster wheels.
  • Cheerful and light trolleys for easy and safe transport.

Customize option available in SS

CONTACT US FOR MORE INFO

Specification

Model No. ND-PHT-150ND-PHT-250ND-PHT-350ND-PHT-700ND-PHT-1200ND-PHT-1800
CapacityKg15025035070012001800
Width of Tablemm480610610685762762
Length of Tablemm7409101067137215241524
Heightmm860860860860860860
MaterialmmSteelSteelSteelSteelSteelSteel
Caster Wheelmm100*35125*35125*35150*35200*50125*35
Net WeightKg12.518.632527318.6

Videos

Options Available

  • Fully Customizable
  • Available in SS
